Manual Orbis Lyra Termostato

Manual

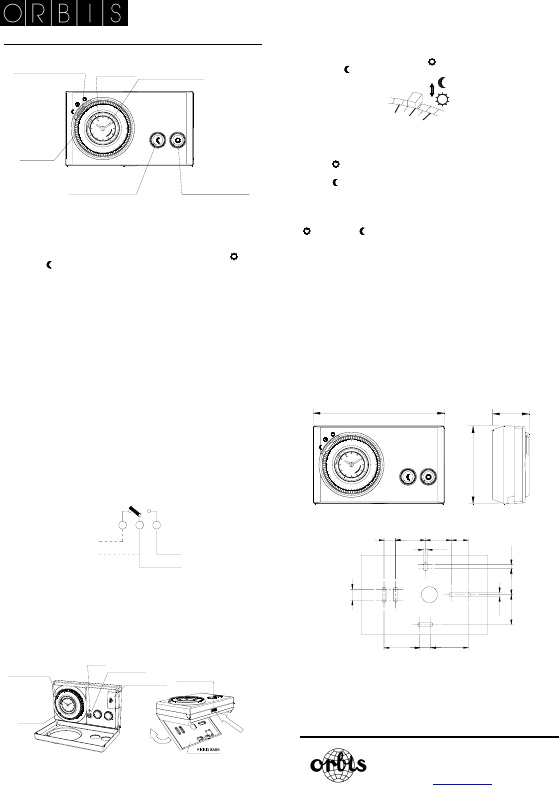

Chronothermostat Lyra

DESCRIPTION:

The chronothermostat LYRA is a friendly analog programmable room thermostat. It

is possible to set different temperatures at different periods of time.

Features

- 2 independent temperatures that can be programmed (Confort and

Saving ).

- Daily programm

- Programming is very confortable as it can be done outside the base over a

dial with pins.

- Can be used to control heating or air condition.

- Minimum period between temperature levels: 15 minutes

Temperature range of adjustment:

Confort: +10 ºC to +40 ºC aprox.

Saving: 0 ºC to +25 ºC aprox.

- Manual override (Confort, automatic or Saving)

- Battery level test.

ATTENTION:

Electrical devices must be installed and assembled by authorized installer. Before

connecting, be sure that the conductors are not under voltage. The device is

internally protected against interference by a safety device.

INSTALLATION

Surface mounting or flush mounting. To fit the device, remove the fixing base by

pressing the push button of the lower part. Fix the base by using the attached

screws. To insert LYRA into the base, first introduce the two upper guides of the

base in the slots of the device and press on the lower part until the flange is fitted

in the apropiate existing hole.

CONNECTION

Connect according with the following schema:

PLACING AND REPLACEMENT OF BATTERIES

The device is powered by two alkaline batteries LR06(AA) of 1,5 V (not included).

Observe the polarity indicated in the housing of batteries. The approximate

batteries duration is one year.

Please, put used batteries in appropriate batteries container.

The device incorporates a push button to test if the batteries still have good level. If

after pressing it, the LED indicator do not light, then replace the batteries.

CLOCK SETTING

Turn the dial clockwise so the index indicates the real time.

The hours handles shall also indicates the real time.

PROGRAMMING

Move up all the pins. Move down the pins corresponding with the hours when the

temperature should be the confort one ( ) and the rest of the time the saving

temperature ( ) is selected.

MANUAL KNOB

3 positions.

.- Permanent in Confort temperature.

¡ .- Automatic. According with the programing of the pins in the dial.

.- Permanent in Saving temperature.

TEMPERATURE ADJUSTMENT

Temperatures can be adjusted by using the selectors corresponding with Confort

( ) and Saving ( ) temperatures.

TECHNICAL FEATURES

Power supply: 2 alkaline batteries LR06(AA) 1,5 V

Switching capacity: 5 (1) A 250 V∼

Battery duration: 1 year roughly

Action type: 1B, 1S, 1T and 1U

Temperature accuracy: ± 1 ºC

Confort temperature range: 10 ºC to 40 ºC aprox.

Saving temperature range: 0 ºC to 25 ºC aprox.

Operating temperature: -10 ºC to 45 ºC

Protection class: II according to EN 60335 when mounting as

intended.

Protection type: IP 40 according to EN 60529

Pollution situation: Normal

DIMENSIONS:

A016.73

.56418

ORBIS TECNOLOGIA ELECTRICA, S.A.

Lérida, 61 E-28020 MADRID

Teléfono: +34 91 5672277; Fax: +34 91 5714006

E-mail: info@ orbis.es

http://www.orbis.es

AIR CONDITION

HEATING

123

12

9

6

3

24

3

6

9

12

15

18

21

MANUAL SWITCH

INDEX

CLOCK HANDS

PINS

SAVING

TEMPERATURE

SELECTOR

CONFORT

TEMPERATURE

SELECTOR

BATTERY COVER

LED

MANUAL SWITCH

ESFERA

BATTERY TEST

PUSH-BUTTON

12

9

6

3

24

3

6

9

12

15

18

2

1

142

84

40

MOUNTING DIMENSIONS

17

263011.5

4

2630

11

37.5

11

36

4

4
