Manual Hikoki C 6SS Serra circular

Manual

5

English

SPECIFICATIONS

The specifi cations of this machine are listed in the Table on

page 116.

NOTE

Due to HiKOKI’s continuing program of research and

development, the specifi cations herein are subject to

change without prior notice.

MOUNTING AND OPERATION

Action Figure Page

Adjusting the cutting depth 2 117

Adjusting the angle of inclination 3 117

Regulating the guide (Optional

accessory)

4 117

Cutting line 5 117

Switch operation 6 117

Dismounting the saw blade 7 118

Mounting the Saw Blade* 8 118

How to store the hex. bar wrench 9 118

Mounting the dust collector set (D) 10 118

Adjusting the base and saw blade

to maintain perpendicularity

11 118

Selecting accessories ― 119

* Washer (A) is supplied for 2 types of saw blades with the

hole diameters of 20 mm and 30 mm.

(When buying the Circular Saw, one type of washer (A) is

supplied.)

MAINTENANCE AND INSPECTION

1. Inspecting the saw blade

Since use of as dull saw blade will degrade effi ciency

and cause possible motor malfunction, sharpen or

replace the saw blade as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that

they are properly tightened. Should any of the screws be

loose, retighten them immediately. Failure to do so could

result in serious hazard.

3. Inspecting the carbon brushes (Fig. 12)

The motor employs carbon brushes which are consumable

parts. Since an excessively worn carbon brush can result

in motor trouble, replace the carbon brushes with new

ones having the same carbon brush No. ⓐ shown in the

fi gure when it becomes worn to or near the “wear limit” ⓑ.

In addition, always keep carbon brushes clean and ensue

that they slide freely within the brush holders.

CAUTION

When replacing the new carbon brushes, always use

genuine HiKOKI carbon brushes with the number

specifi ed in the drawing.

4. Replacing carbon brushes

Disassemble the brush caps with a slotted-head

screwdriver. The carbon brushes can then be easily

removed.

5. Replacing supply cord

If the replacement of the supply cord is necessary, this

has to be done by the manufacturer of this agent in order

to avoid a safety hazard.

6. Motor unit maintenance

The motor winding is an important part of this tool. Avoid

damaging and be careful to avoid contact with cleaning

oil or water.

After 50 hours of use, clean the motor by blowing into the

ventilation holes of the motor housing with dry air from an

air gun or other tool (Fig. 13).

Dust or particle accumulation in the motor can result in

damage.

7. Inspecting and maintaining the lower guard

Always make sure that the lower guard moves smoothly.

In the event of any malfunction, immediately repair the

lower guard.

For cleaning and maintenance, use an air gun or other

tool to blow clean the space between the lower guard

and gear cover as well as the rotation part of the lower

guard with dry air (Fig. 13).

Doing so is eff ective for the emission of chips or other

particles.

Accumulation of chips or other particles around the lower

guard may result in malfunction or damage.

WARNING

To prevent dust inhalation or eye irritation, wear

protective safety goggles and a dust mask when

using an air gun or other tool to clean the lower guard,

ventilation holes or other parts of the product.

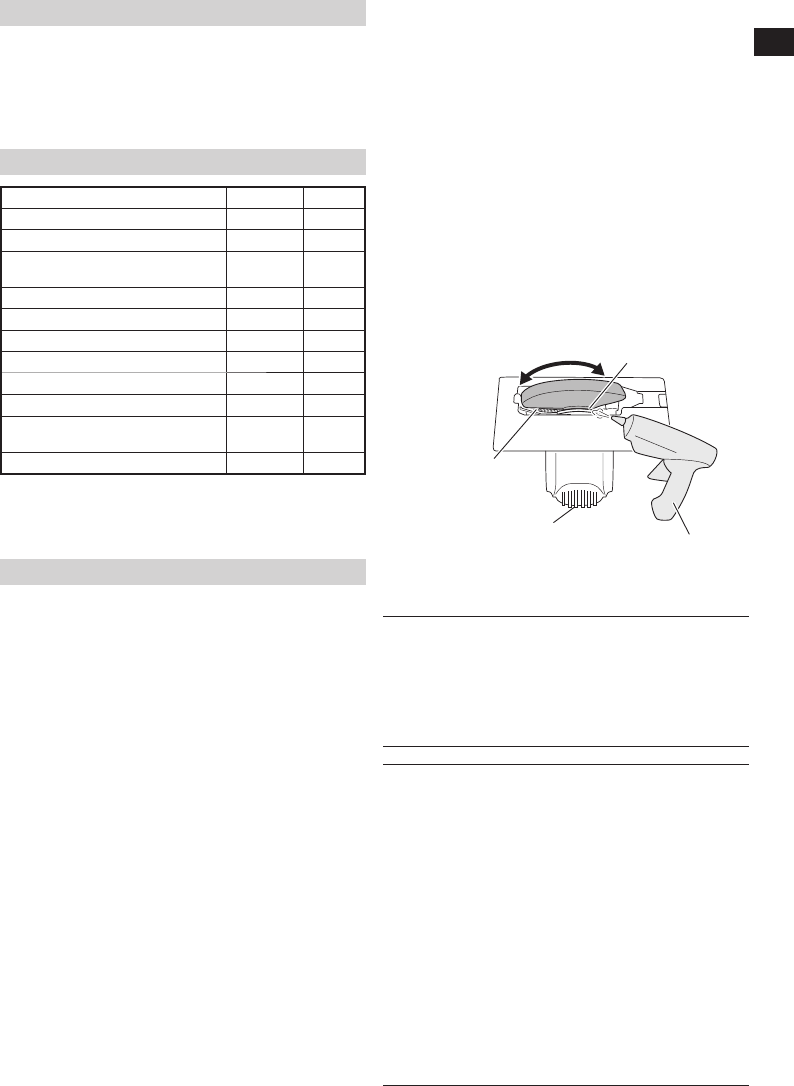

Ensure smooth movement

of lower guard

Rotation part of the

lower guard

Housing vent

Space between lower

guard and gear cover

Air gun

Fig. 13

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with

statutory/country specifi c regulation. This guarantee does

not cover defects or damage due to misuse, abuse, or

normal wear and tear. In case of complaint, please send

the Power Tool, undismantled, with the GUARANTEE

CERTIFICATE found at the end of this Handling instruction,

to a HiKOKI Authorized Service Center.

IMPORTANT

Correct connection of the plug

The wires of the main lead are coloured in accordance

with the following code:

Blue: — Neutral

Brown: — Live

As the colours of the wires in the main lead of this tool may

not correspond with the coloured markings identifying the

terminals in your plug proceed as follows:

The wire coloured blue must be connected to the terminal

marked with the letter N or coloured black. The wire

coloured brown must be connected to the terminal marked

with the letter L or coloured red. Neither core must be

connected to the earth terminal.

NOTE:

This requirement is provided according to BRITISH

STANDARD 2769: 1984.

Therefore, the letter code and colour code may not be

applicable to other markets except The United Kingdom.

0000Book̲C6SS.indb50000Book̲C6SS.indb5 2019/02/1216:08:372019/02/1216:08:37
