4 Operation

Operation manual

6

ATXF25~35A5V1B

Daikin room air conditioner

3P520336-8D – 2019.02

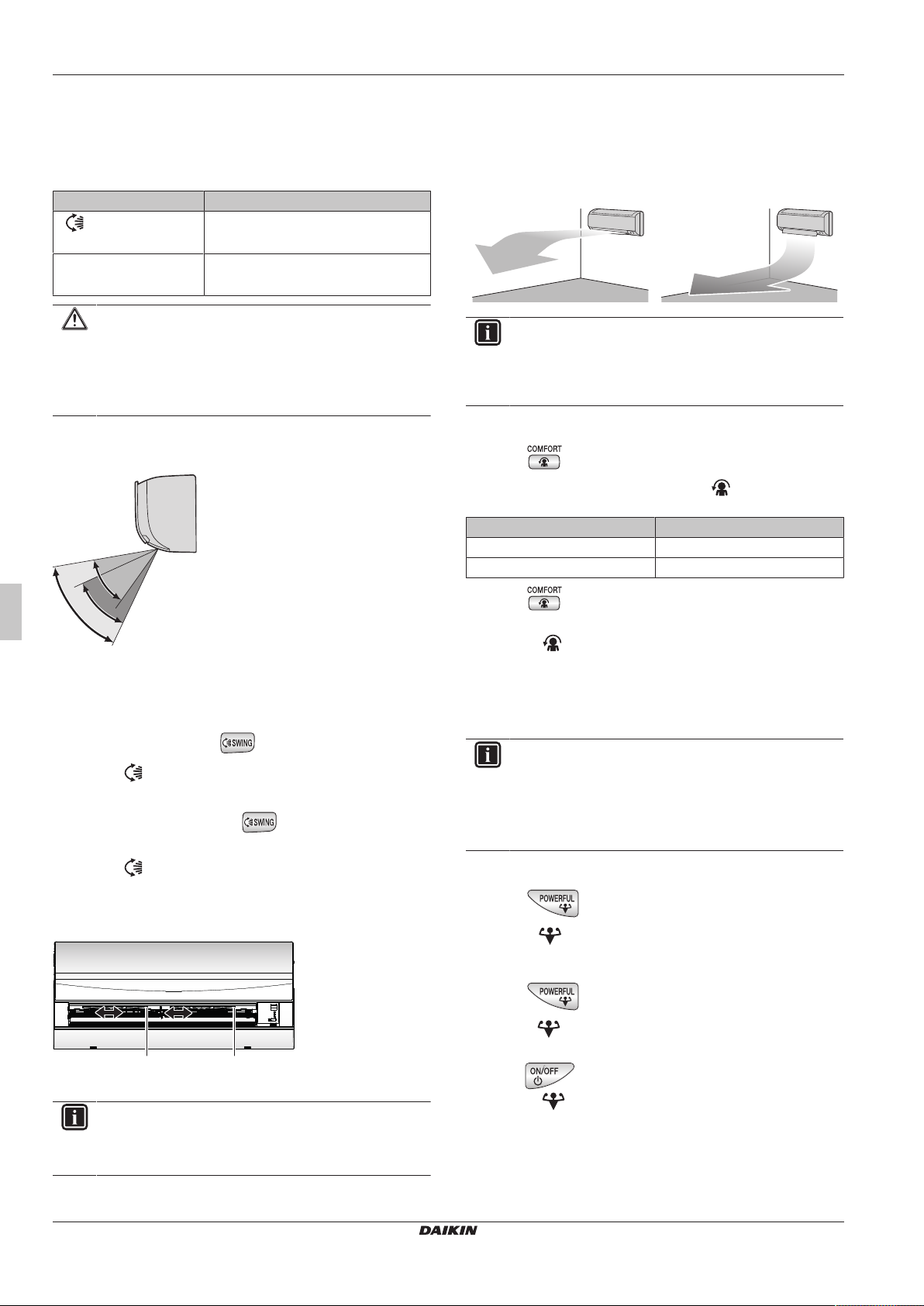

4.3.3 Airflow direction

When. Adjust the airflow direction as desired.

What. The system directs the airflow differently, depending on the

user selection (swinging or fixed position). It does so by moving the

vertical blades.

Setting Airflow direction

Vertical auto swing

Moves up and down.

[—] Stays in a fixed position.

CAUTION

▪ ALWAYS use a user interface to adjust the angle of the

flap. When the flap is swinging and you move it forcibly

by hand, the mechanism will break.

▪ Be careful when adjusting the louvers. Inside the air

outlet, a fan is rotating at high speed.

Note: The movable range of the flap varies according to the

operation mode. The flap will stop at the upper position when the

airflow rate is changed to low during the up and down swing setting.

a

b

c

a Flap range in cooling or drying operation

b Flap range in hating operation

c Flap range in fan only operation

To adjust the airflow direction

1 To use auto swing, press .

Result: will appear on the LCD.

Result: The flap (horizontal blade) will begin to swing.

2 To use fixed position, press when the flap reaches the

desired position.

Result: disappears from the LCD.

To adjust the louvers (vertical blades)

1 Hold 1 or both knobs and move the louvers.

aa

a Knobs

INFORMATION

When the unit is installed in a corner of a room, the

direction of the louvers should be facing away from the

wall. Efficiency will drop if a wall blocks the air.

4.3.4 Comfort airflow operation

This operation can be used in heating or cooling operation mode. It

will provide a comfortable wind that will NOT come in direct contact

with people. The system automatically sets the fixed airflow position

upward in Cooling and downward in Heating operation mode.

Cooling operation mode Heating operation mode

INFORMATION

Powerful and Comfort airflow operation CANNOT be used

at the same time. The last selected function takes priority.

If the vertical automatic swing is selected, Comfort airflow

operation will be cancelled.

To start/stop Comfort airflow operation

1 Press to start.

Result: The flap position will change, is displayed on the

LCD, and the airflow rate is set to automatic.

Mode Position of flap…

Cooling/Drying Up

Heating Down

2 Press to stop.

Result: The flap will return to the position from before the Comfort

airflow mode; disappears from the LCD.

4.3.5 Powerful operation

This operation quickly maximizes the cooling/heating effect in any

operation mode. You can get the maximum capacity.

INFORMATION

Powerful operation CANNOT be used together with Econo

and Comfort airflow operation. The last selected function

takes priority.

Powerful operation will NOT increase the capacity of the

unit if it already operates at maximum capacity.

To start/stop Powerful operation

1 Press to start.

Result: is displayed on the LCD. Powerful operation runs

for 20minutes; after that, operation returns to the previously set

mode.

2 Press to stop.

Result: disappears from the LCD.

Note: Powerful operation can be set only when the unit is running. If

you press or if you change operation mode, operation will

be cancelled; disappears from the LCD.
