DECORATIVE EXTRACTOR HOODS

Dear client,

We are sure that the purchase of our extractor hood will fully

satisfy all of your needs.

Please read this instruction manual carefully in order to obtain the

best results from the use of the hood.

    

USE

If you need any technical help or would like more information about

our products, please do not hesitate to contact our official distribu-

tor.

GENERAL INDICATIONS

Before installing and using the hood, be sure that the voltage (V)

and the frequency (Hz) indicated on the feature plate match the

voltage and frequency at the installation site.

The feature plate and technical data are shown on the inside of the

product.

For better performance in extracting fumes we advise that tubing

installed should be of a diameter not less than 120 mm. We also

advise using rigid PVC tubing.

ELECTRICAL CONNECTION

Connect the cord to a socket or double pole switch, which must

have a minimum contact opening distance of 3 mm.

The manufacturer shall not be liable for failure to observe all safe-

ty regulations in force for the correct and normal operation of

electrical parts.



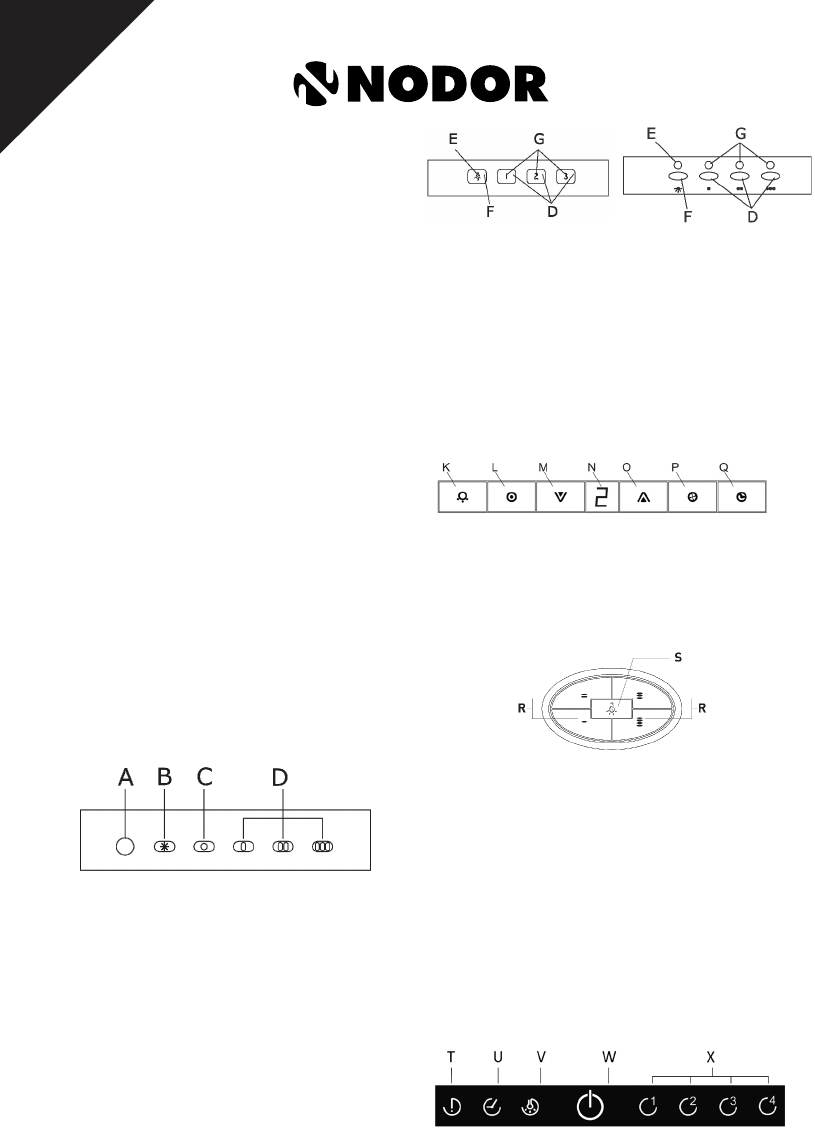

This panel is situated on the front of the extractor and includes:

- 3 control switches for the motor (speed

positions 1, 2 and 3) (ref D)

- Off button of the motor (ref C)

- On/off light of the motor (ref A)

- Light switch (ref. B)

ELECTRONIC SWITCH CONTROL PANEL

This panel is located on the front part of the hood and inclu-

des:

- 3 position motor control switch (1st, 2nd, and 3rd speed) (Ref. D).

- Lighting control lamp. Fig. 6. (Ref. E).

- Motor control lights. (Ref. G).

- Light switch (Ref. F).

TIMING: To operate the canopy timer, having selected the speed,

press the button for two seconds until the LED light blinks. The

timer will then work for 15 minutes.

At the end of this time, the motor will stop and the light will go out.

If it is still on, and you wish to cancel the timing, press the timer

button once and the motor will stop.



This panel is situated on the front of the extractor and includes:

- Button for the light (ref. K).

- On/off button of the motor (ref. L).

- Button for reducing the motor speed (ref. M).

- Motor speed indicator (ref. N).

- Button for increasing the motor speed (ref. O).

- Button for directly activating the TURBO speed of the motor

(ref. P).

- Button for setting the timer of the motor (ref. Q).

The extractor will operate for 5 minutes at the current speed and 5

minutes at each of the lower speeds until coming to a complete

stop.



This panel is situated on the front of the extractor and includes:

- 4 buttons for controlling the operation of the motor (position 1,

2, 3 and turbo) (Ref R)

- Button for the light. (Ref S)

TOUCH CONTROL PANEL

This panel is located on the front part of the hood and includes:

- Filter cleaning alert indicator/switch (ref. T).

Activated regularly to alert of the need to clean filters and deacti-

vated with a single press.

-Button for setting the timer of the motor (ref. U).

The extractor will operate for 5 minutes at the current speed and 5

minutes at each of the lower speeds until coming to a complete

stop.

-Button for the light (ref. V).

Allows the light to be regulated by pressing and holding down.

-On/off button of the motor (ref. W).

-3/4 position motor control switch (1st, 2nd, 3rd, and 4th speed)

(Ref. X).

GB
