Manual Daikin ATXF35A5V1B Ar condicionado

Manual

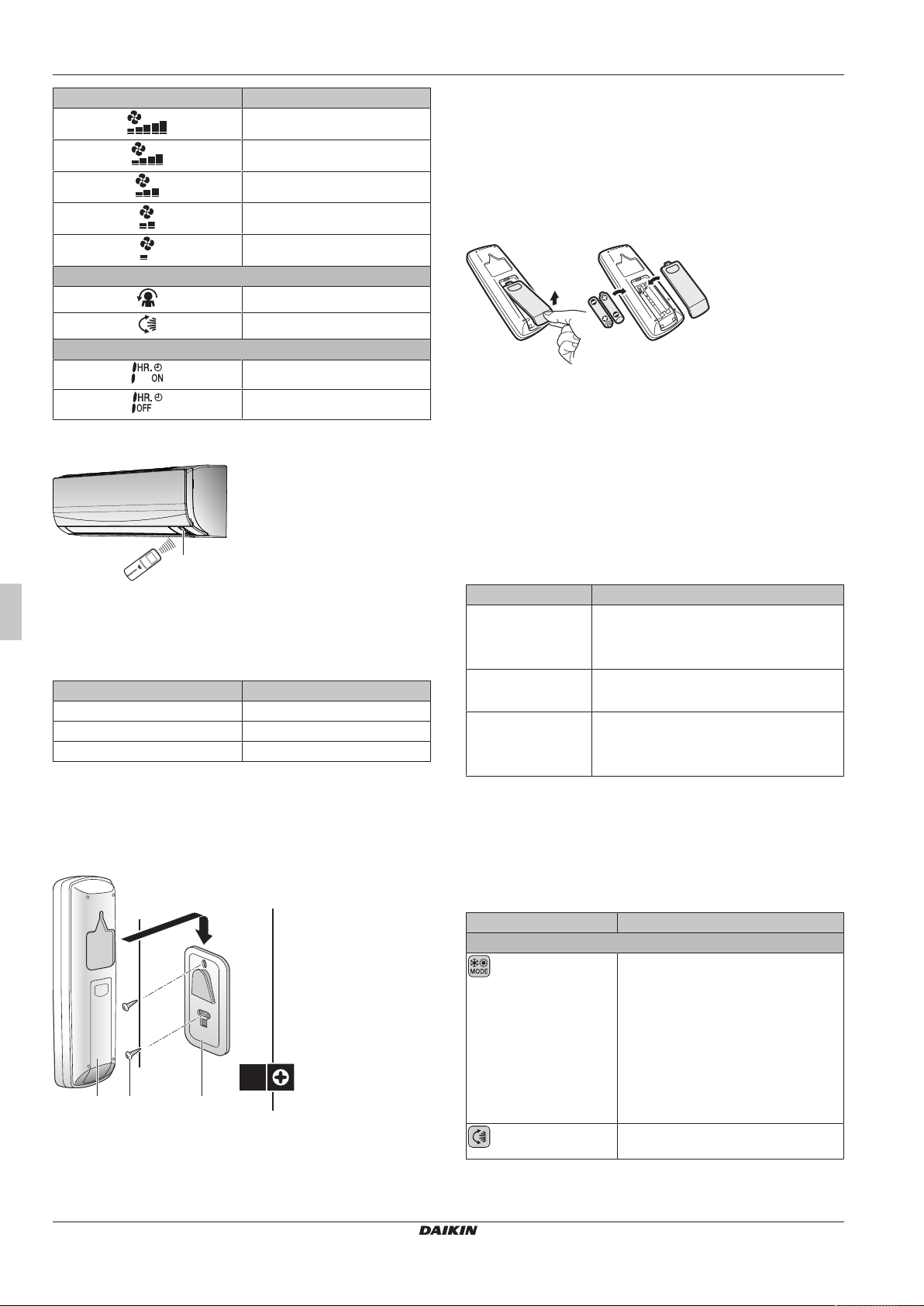

3 Before operation

Operation manual

4

ATXF25~35A5V1B

Daikin room air conditioner

3P520336-8D – 2019.02

Icon Description

Airflow rate = High

Airflow rate = Medium high

Airflow rate = Medium

Airflow rate = Medium low

Airflow rate = Low

Comfort operation is active

Auto vertical swing is active

ON timer is active

OFF timer is active

2.2.3 To operate the user interface

a

a Signal receiver

1 Aim the signal transmitter at the signal receiver on the indoor

unit (maximum distance for communication is 7m).

Result: When the indoor unit receives a signal from the user

interface, you will hear a sound:

Sound Description

Beep-beep Operation starts.

Beep Setting changes.

Long beep Operation stops.

3 Before operation

3.1 To mount the user interface holder

2×

b ca

a User interface

b Screws (field supply)

c User interface holder

1 Choose a place where the signals reach the unit.

2 Attach the holder with screws to the wall or a similar location.

3 Hang the user interface on the user interface holder.

3.2 To insert the batteries

The batteries will last for about 1 year.

1 Remove the back cover.

2 Insert both batteries at once.

3 Put the cover back.

2

3

1

AAA.LR03

3.3 To turn on the power supply

1 Turn the circuit breaker on.

Result: The flap of the indoor unit will open and close to set the

reference position.

4 Operation

4.1 Operation range

Operation mode Operation range

Cooling

(a)(b)

▪ Outdoor temperature: –10~46°C DB

▪ Indoor temperature: 18~32°C DB

▪ Indoor humidity: ≤80%

Heating

(a)

▪ Outdoor temperature: –15~24°C DB

▪ Indoor temperature: 10~30°C DB

Drying

(a)

▪ Outdoor temperature: –10~46°C DB

▪ Indoor temperature: 18~32°C DB

▪ Indoor humidity: ≤80%

(a)

A safety device might stop the operation of the system if the unit

runs outside its operation range.

(b)

Condensation and water dripping might occur if the unit runs

outside its operation range.

4.2 When to use which feature

You can use the following table to determine which features to use:

Feature Tasks

Basic features

Operation modes and

temperature

To start/stop the system and to set the

temperature:

▪ Heat up or cool down a room.

▪ Blow air in a room without heating or

cooling.

▪ Decrease the humidity in a room.

▪ In Automatic mode, automatically

select an appropriate temperature

and operation mode.

Airflow direction

To adjust the airflow direction (swing or

fixed position).
