2.4. ELECTRICAL CONNECTION

Cookers can be presented with or without enrgy cable. Cable

connection should be done by Autorited service according to

following instructions.

The electrical connection must be made according to the standards

and regulations in force. Before making the electrical connection,

check the following:

•Is the capacity of the electrical connections and safety fuses in the

building sufficient to cope with the load of the appliance? (Check with

the adhesive info label)

•Does the electricity supply line have an earth connection conforming

with the standards in force? A proper earth connection must exist in

your home. If there is not a proper earth connection at your home,

please apply to an authorized technician to deal with this problem.

•Is the socket or the multi-pole switch at a easily reachable point after

the installation of the appliance?

•A plug conforming to standards should be connected to the mains

cable and the cable should be inserted into a safe socket.

•A multi-pole switch must be used between the appliance and the

electricity line if a direct electrical connection to the appliance is

required. (It must comply with standards and be appropriate for the

load)

The green-yellow ground cable must not be interrupted by a switch.

The brown phase cable (from the “L" coded connector of the oven)

must always be connected to the phase line of the mains.

•The power line must be positioned so that it is not exposed to

temperatures higher than 50° C.

•When the power cable must be changed, a cable with a cross section

appropriate to the indicated power must be used. The green-yellow

ground cable should be approximately 2 cm longer than phase and

neutral cables.

•Check the heaters by switching them on for 3 minutes, after having

completed the connection.

•

arising due to non-compliance with the safety standards.

•

means for disconnection from the supply mains having a contact

separation in all poles that provide full disconnection under

overvoltage category III conditions, in accordance with the wiring

rules

The manufacturer will not accept responsibility for damages

For the direct connection to the fixed wiring, it’s nessessary to provide

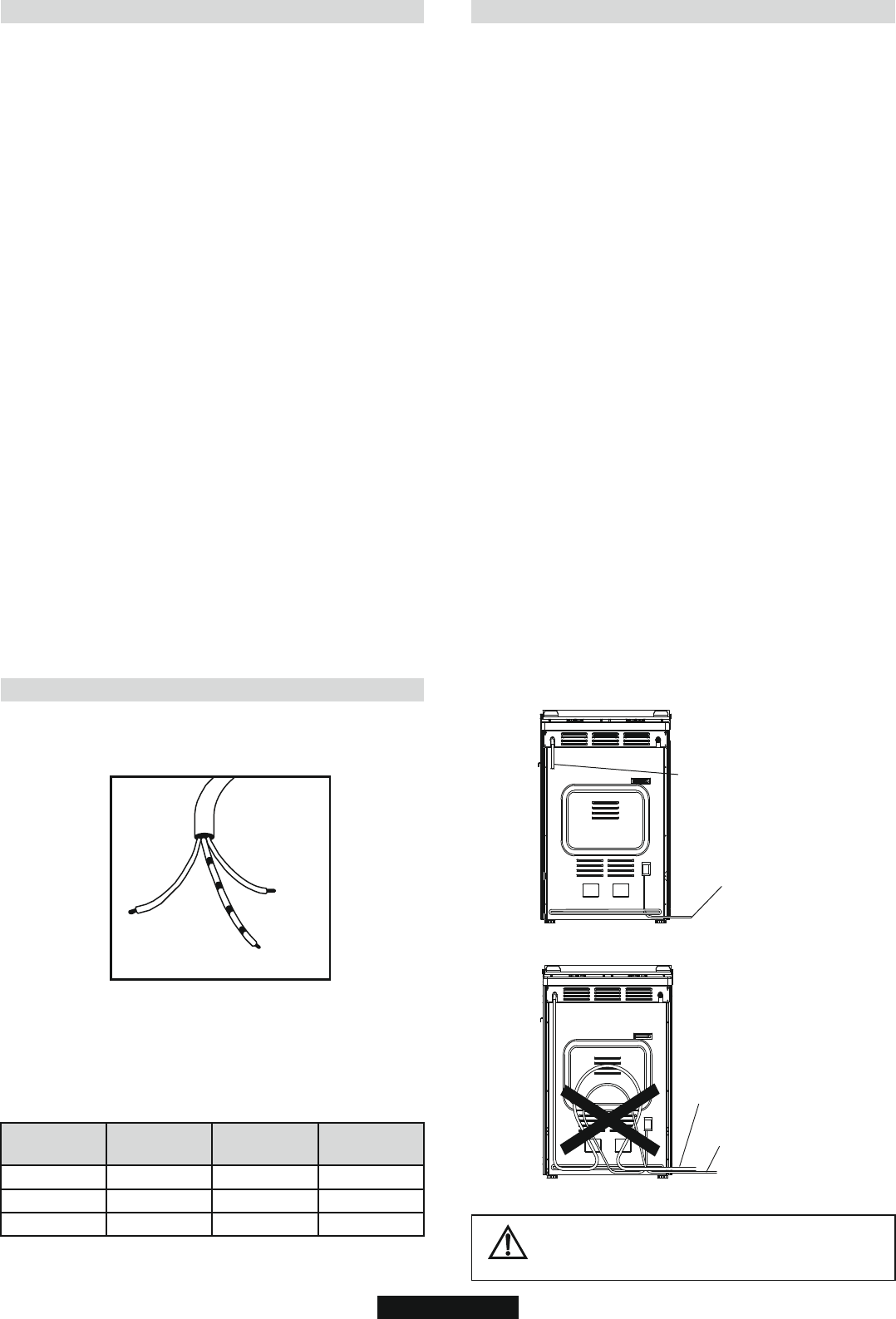

2.5. COOKERS WITH ENERGY CABLE

•Connection is exclusively envisaged under tensions of 220-240V

Between phases or between phases and neutral.

Neutral

(blue)

Ground cable (Green-Yellow)

Phase cable

(brown)

The gas must be connected to the appliance according to standard

and the provisions in force.

•When the appliance left the factory, it was regulated for the gas type

stated on the adhesive info label near the gas inlet at the back of the

appliance.

Make sure that you are using the gas stated on the label. If it is a

different type of gas, follow the instructions in the chapter on

conversion to different gas types'.

•Make sure that gas supply pressure is that given in the gas type

category table (Last 3 pages in this user manual) in order to achieve

maximum efficiency and lowest consumption. If the gas pressure is

different, a proper gas regulator should be used on the gas inlet. The

use of a gas regulator complying with the standards for LPG is

allowed.

Connection with a Solid or Flexible Metal Pipe

•The gas supply can be connected by a proper flexible stainless steel

pipe according to the safety standards in force. In this case, there will

be no further need to move the appliance. The gas inlet connector of

the appliance is Gc ½.

Connection with a Flexible Non-metallic Pipe

•If the gas connection is in a position where it can be switched on and

off when required, a flexible pipe complying with the standards in force

can be used. The flexible pipe must be firmly fixed with a clamp.

•The flexible pipe can be connected as follows:

•Since the flexible pipe will be placed behind the oven, it should be

exposed to temperatures no higher than 30ºC at any point.

•The length should be no longer than 150 cm.

•It must not be exposed to steam.

•No folding, bending or tension is allowed.

•It should be protected against sharp or piercing objects.

•It must be accessible in order to allow for periodic inspection.

•The flexible pipe must be checked as follows to guard against wear

over time:

•Check that there are no cracks, cuts or burned spots on or at the ends

of the pipe.

•The material must maintain its flexibility . Excessive rigidity is not

allowed.

•There must be no rust on the clamps.

•It should be replaced in any case after no more than 5 years' usage.

Check all connections for leaks with a soapy substance

after the installation is completed. Do not use a flame

for to check gas leaks.

RIGHT

FLEXIBLE GAS PIPE LINE

ELECTRICAL CABLE

WRONG

FLEXIBLE GAS PIPE LINE

ELECTRICAL CABLE

•

the After Sales Service or by an agreed engineer, with a cord whose

characteristics must be similar to the original one

The eventual replacement of the supply cord must be carried on by

08 GB

2.6. GAS CONNECTION

Model rated

power (kW)

Rated Voltage

(V)

Rated Current

(A)

Supply Cable

2.3 kW

3.5 kW

4.0 kW

220 - 240 V

220 - 240 V

220 - 240 V

9.1 A

15.9 A

18.2 A

3 x 1.0 mm

2

3 x 1.5 mm

2

3 x 2.5 mm

2

Ratings/Supply Cable Sections:
