Precautions

Points to observe for safe usage

Read this manual carefully before using this item and its

components. They contain instructions on how to use this

product in a safe and effective manner. Caliber Europe BV

cannot be responsible for problems resulting from failure to

observe the instructions in this manual.

Turn off the device immediately in case of a problem.

Failure to do so may cause personal injury or damage to the

product. Return it to your authorized Caliber Europe BV dealer

for repairing.

Product cleaning.

Use a soft dry cloth for periodic cleaning of the product. For

more severe stains, please dampen the cloth with water only.

Anything else has the chance of dissolving the paint or damaging

the plastic.

Temperature.

Be sure the temperature inside the room is between +35°C

(+95°F) and -10°C (+14°F) before turning your unit on.

Maintenance.

If you have problems, do not attempt to repair the unit yourself.

Return it to your Caliber Europe BV dealer for servicing.

Placement.

Place the product on a at surface. Provide enough space around

the product for sufcient ventilation.

Heat.

Do not locate the appliance in the vicinity of a heat surface or in

direct sunlight.

Accessories.

Use only supplied accessories

Battery.

Avoid overcharging. The battery could overheat.

Replace battery.

The built-in rechargeable battery is not replaceable. Do not

remove or replace the battery, do not throw in the trash or in

the re.

!

!

!

!

!

Charging the unit

The player is powered by a lithium-polymer battery. It takes about 3~4 hours

to fully charge the battery when the unit is turned off. When fully charged, the

battery can be used for about 2 hours.

• By Cigarette Lighter Adapter

Plug one end of the cigarette lighter adapter into the jack on the unit, then

plug the other end into the cigarette lighter socket of a car.

• By AC/DC adapter

Connect the attached AC/DC adapter to the the unit, then plug the adapter

into a 100-240V,50/60Hz AC outlet.

Usage and Maintenance of the Rechargeable Battery

• The working temperature of the rechargeable battery ranges from 0 to 45

o

C.

• Always unplug the unit when it is not being used or charged.

• Heat is inevitably produced during the playback, which is normal.

• Do not subject the unit to strong impacts.

• Keep it away from humidity and overheat.

DVD or USB playback

The unit can play les from DVD/CD as well as from USB (max. 16GB). Insert

a Disc or USB and make sure the unit is on the right source. Use [SOURCE] to

change between them.

Connecting to TV

It’s possible to connect the player to a TV, but you’ll need an AV cable with

Jack-to-RCA plugs. Connect the Jack plug to the AV-OUT socket on the player

and the RCA plugs to the video input terminal and L/R channel audio input

terminals of a TV.

Connections headphones

A stereo headphone (included) can be used for private listening. Plug in the

3.5mm Jack plug into the socket with the  and use the volume adjustment of

the monitor to nd a comfortable listening level.

Note: when headphones are connected, the main speakers will automatically

be muted. Make sure your player is set at a low volume level before connecting

the headphones.

Caution: listening at high volumes for a long period could cause hearing loss.

System setup

Press [SOURCE] to open the setup menu. Use the direction buttons W S A D

to select the preferred item. After nishing settings, press [SOURCE] again to

exit the menu.

General page

- TV display

Selects the aspect ratio of the playback picture.

• 4:3 PS: if you have a normal TV and want both sides of the picture to be

trimmed or formatted to t your TV screen.

• 4:3 LB: if you have a normal TV. In this case, a wide picture with black

bands on the upper and lower portions of the TV screen will be displayed.

• 16:9: wide screen display.

• Wide squeeze: to make it t the wide screen

- Angle mark

To turn the on screen angle mark notication ON/OFF

- Language setup

You can select OSD language and select audio/subtitle/menu language of

DVD discs if available.

- Closed caption

To show the closed caption to show a hidden video signal (if available on the

DVD disc)

- Screen saver

To turn ON/OFF the screen saver function.

- Auto standby

The function is use to select standby setting: OFF, 3 HOURS,4 HOURS

• OFF: No standby

• 3 HOURS: No remote or panel key operation within 3 hours > into standby

• 4 HOURS: No remote or panel key operation within 4 hours > into standby

Audio page

- Downmix

This option allows you to set the stereo analog output of your DVD Player.

• LT/RT: Select this option if your DVD Player is connected to a

Dolby Pro Logic decoder.

• Stereo: Select this option when output delivers sound from only the two

front speakers.

- Dolby digital

• Dual Mono: Stereo for normal stereo sound

• L-Mono: Left mono sound to be heard for both speakers

• R-Mono: Right mono sound to be heard for both speakers

• Mix-Mono: Mixed left and right signal from both speakers.

- Dynamic

Range compression to be set OFF ~ FULL

Video page

- Brightness (-16 ~ +16)

- Contrast (-16 ~ +16)

- Hue (-9 ~ +9)

- Saturation (-9 ~ +9)

Preference page

- TV type

Selecting the color system that corresponds to your TV when using AV output.

This DVD Player is compatible with both NTSC and PAL.

• PAL - Select this if the connected TV is PAL system. It will change the

video signal of a NTSC disc and output in PAL format.

• NTSC - Select this if the connected TV is NTSC system. It will change the

video signal of a PAL disc and output in NTSC format.

• AUTO: auto detection

- Audio

Selects the chosen language for playback (if available)

- Subtitle

Selects the chosen language for subtitles (if available)

- Disc menu

Selects the chosen language for the DVD menu (if available)

- Parental

Set your parental level to hold back playback of certain disc/scenes

(if available)

- Default

Restore the factory setting of setup menu.

Password page

- Password mode

Turn ON/OFF password option for setup menu

- Password

To change the password. Default password is 1369.

Remote

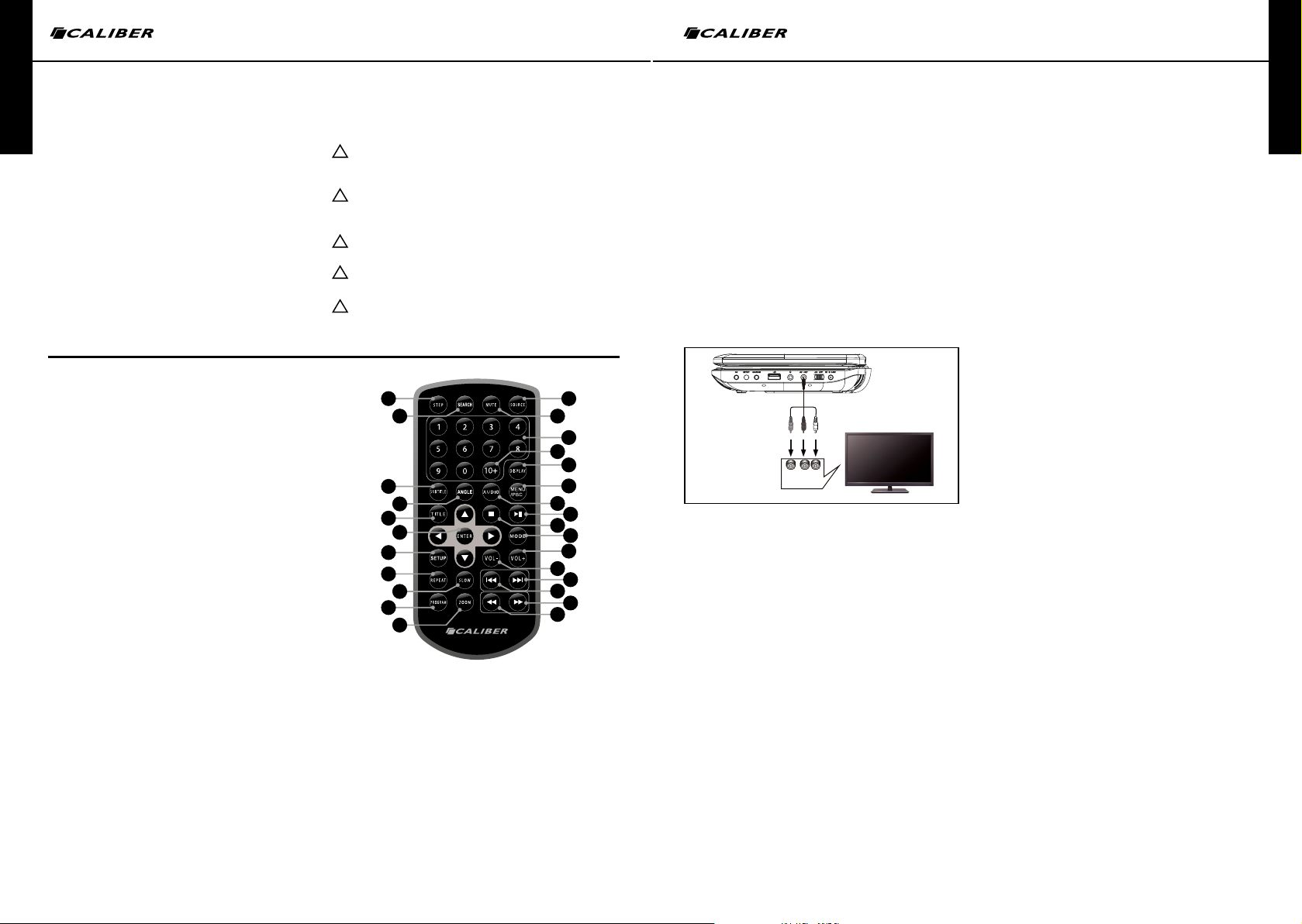

1. STEP

Press to pause playback, from this point use [STEP] to go through the frames

step-by-step.

2. SEARCH

Go to time point, title or chapter in DVD Mode.

3. SUBTITLE

Press repeatedly during playback to get a different subtitle language.

4. ANGLE

Will change the view angle on DVDs that support this feature.

5. TITLE

Return to DVD title menu.

6. ENTER

Conrms or enters menu selection.

7. SETUP

Access or exit setup menu.

8. REPEAT

Press during playback to select a desired repeat mode.

- DVD: you can play a chapter/title/all on a disc.

- VCD/CD: you can play a track/all on a disc.

- MP3/WMA: you can select Repeat one/Repeat folder/ALL play mode on a disc.

9. SLOW

Press Slow button repeatedly to enter slow playback, and cycle between different

speeds. The speeds are 1/2,1/4,1/8,1/16,and normal.

10. PROGRAM (DVD VCD CD)

The program function enables you to store your favourite tracks from the disc.

Press to open the menu on screen, now you can use the number or direction keys

to select the titles, chapters or tracks. Select [PLAY] option to resume normal

playback.

Press [PROGRAM] and select [CLEAR] to delete the list.

JPEG: You can press [PROGRAM] repeadetly to select the slide showmode,

there are 16 types slide show.

11. ZOOM

Each press of the ZOOM button changes the TV screen in the following sequence:

2x size 3x size 4x size 1/2 1/3 1/4.

12. SOURCE (reads DVD or USB).

13. MUTE

Disable audio output, push again to resume.

14. 0-9 numbers

Selects numbered items in a menu.

15. 10+

In order to select a track 10 or greater, rst press 10+.

For example; to select track 12, rst press 10+ and then press number 2 button.

16. DISPLAY

To display the playtime and status information.

17. MENU

Opens the menu on a DVD disc or PBC ON/OFF switch for VCD.

18. AUDIO

- DVD: Press repeatedly during playback to hear a different audio language or

audio track, if available.

- VCD: Press repeatedly during playback to hear a different audio channel

(Stereo, Left, or Right).

1

2

3

4

5

6

8

9

7

10

11

12

13

14

17

18

16

19

20

22

23

21

25

24

27

26

15

19. PLAY/PAUSE [12]

Press to pause playback, press again to resume.

20. STOP [3]

- Press once: to stop and resume later (press [ENTER] to resume).

- Press twice: stops playback (no resume function)

21. MODE

Set LCD parameter(adjust brightness, contrast,and saturation).

22. VOL +

Increase volume.

23. VOL -

Decrease volume.

24. 7

Go to previous chapter/track.

25. 8

Go to next chapter/track.

26. 6

To fast forward, 5 speed level: X2->X4->X8->X16->X32

(press repeatedly)

Press ENTER button return to normal playback.

27. 5

To rewind, 5 speed level: X2->X4->X8->X16->X32

(press repeatedly)

Press ENTER button return to normal playback.

L
